| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | PORTABLE |
| BRAND | HUGHES |
| MODEL | 9202M BGAN |
| PART # | 3500566-0004 |
| NETWORK | INMARSAT |
| CONSTELLATION | 3 SATELLITES |
| USAGE AREA | GLOBAL (EXCEPT POLAR REGIONS) |
| SERVICE | INMARSAT BGAN |
| FEATURES | PHONE, TEXT MESSAGING, INTERNET, EMAIL, FTP, VoIP, VIDEO STREAMING, ISDN (64 Kbps), FoIP (FAX) |
| DATA SPEED | UP TO 448 / 464 kbps (SEND / RECEIVE) |
| STREAMING IP | 32 kbps, 64 kbps, 128 kbps |
| LENGTH | 216 mm (8.5") |
| WIDTH | 216 mm (8.5") |
| DEPTH | 41 mm (1.61") |
| WEIGHT | 1.4 kg (3.1 lbs) |
| FREQUENCY | L BAND (1-2 GHz) |
| OTHER DATA INTERFACES | ETHERNET, WI-FI |
| INGRESS PROTECTION | IP 55 |
| ACCESSORY TYPE | TERMINAL |
| STANDBY TIME | UP TO 36 HOURS |
| OPERATING TEMPERATURE | -5°C to 55°C (23°F - 131°F) |
| STORAGE TEMPERATURE | -20°C to 60°C with battery -25°C to 80°C excluding battery |
| CERTIFICATIONS | INMARSAT CLASS 2 TYPE APPROVAL, CE COMPLIANCE, FCC |
| SUPPORTED LANGUAGES | ENGLISH |
Hughes 9202 Features
- Rugged and durable IP55 rating
- Backlit LCD user display including four-button control
- Wi-Fi supporting multi-user access
- Two-line RJ11 for voice and fax
- Advanced integrated user interface (IUI)
- Automatic Context Activation (ACA)
- XL-band supported
Package Contents
- Hughes 9202 Land Portable Terminal
- Rechargeable lithium ion battery pack
- 5m Ethernet cable
- AC/DC adaptor with UK, EU, and US power cables

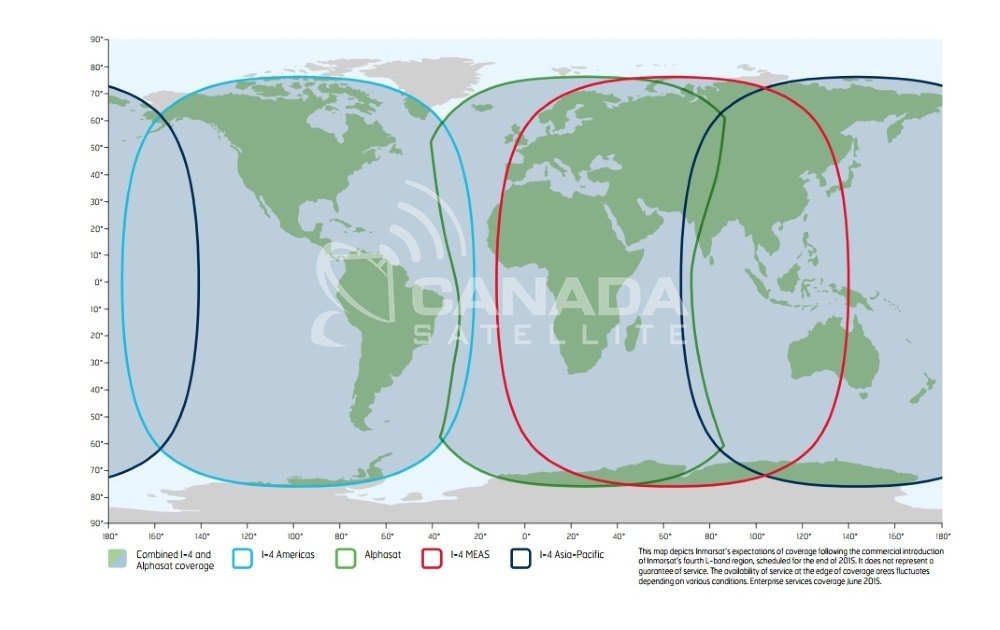

Inmarsat BGAN Coverage Map
This map depicts Inmarsat's expectations of coverage following the commercial introduction of Inmarsat's fourth L-Band region. It does not represent a guarantee of service. The availability of service at the edge of coverage areas fluctuates depending on various conditions.
