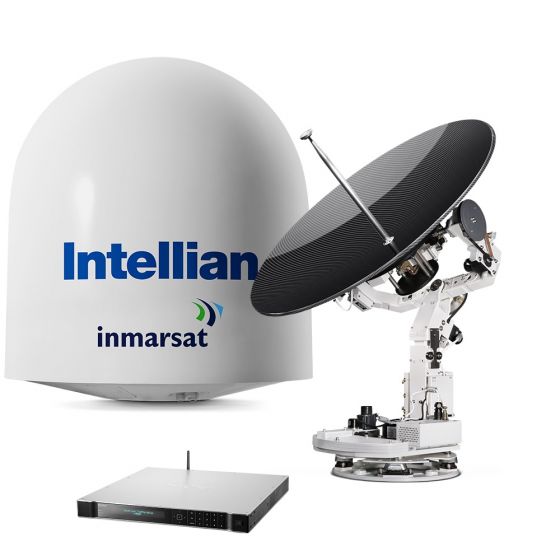

The v100GX is a 1 meter Ku-band to Ka-band convertible maritime stabilized antenna, a ready-to-use system for the super-fast, GlobalXpress (GX) Ka-band broadband service from Inmarsat.
The Intellian GX100NX HP Inmarsat Fleet Xpress Marine Antenna System is a high-performance, fully stabilized maritime antenna designed to deliver exceptional satellite broadband connectivity, even in challenging sea conditions. This advanced system leverages the power of Inmarsat Fleet Xpress to provide seamless global coverage and ultra-high-speed data transfer, enabling efficient operations and enhanced communication for demanding maritime applications.
| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | MARITIME |
| BRAND | INTELLIAN |
| PART # | GX100NXHP |
| NETWORK | INMARSAT |
| USAGE AREA | GLOBAL (EXCEPT POLAR REGIONS) |
| SERVICE | INMARSAT FLEET XPRESS (FX) |
| ANTENNA SIZE | 100 cm |
| WEIGHT | 128 kg (282 lb) |
| ACCESSORY TYPE | ANTENNA |
| RADOME HEIGHT | 151.0 cm (59.63 inch) |
| RADOME DIAMETER | 138 cm (54.3 inch) |
Intellian v100GX Features
Simple Conversion from Ku to Ka
Converts easily and quickly from Ku-band system to a Ka-band system with a simple integrated RF module consisting of the BUC and LNB
The combined RF BUC & LNB assembly is attached to the rear side of the reflector, with no need to rebalance the system after conversion
Gyro-Free Satellite Search Capability
No external heading device input required
Reduces installation time, automated Bow offset using Aptus
Remote Access via Aptus
Built-in web interface for remote management, control and updating brings tech support aboard the vessel
Automated Diagnostics including internal Spectrum Analyzer
Global Satellite Library
Preinstalled database of detailed satellite data
Customizable satellite library for a specific network
Auto Beam Switching (ABS)
Supports ABS via the OpenAMIP protocol from iDirect and the ROSS Open Antenna Management (ROAM) protocol from Comtech
Global PLL LNB
Standard equipped with Intellian's patented Global PLL LNBs
The Global PLL LNB is the world's first Ku-band LNB module capable of receiving a full range of operating frequencies from any VSAT satellite around the globe
Optional Dual VSAT Mediator
Ensures uninterrupted broadband communications
Communicates simultaneously with two Antenna Control Units (ACU). Ideal for redundant antenna environments
Seamlessly switches between two antennas
Global Support
3-Year Global Warranty backed by over 300 Intellian Service and Support centers around the world
3 Year Global Warranty
Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017
Anatel Approved
Approved for sale and operation in Brazil
Inmarsat Global Xpress (GX) Coverage Map
This map depicts Inmarsat’s expected coverage following the commercial introduction of Inmarsat-5 F4 (I-5 F4). The position of I-5 F4 shown in this map is indicative only. This map does not represent a guarantee of service. Global Xpress coverage January 2017.
