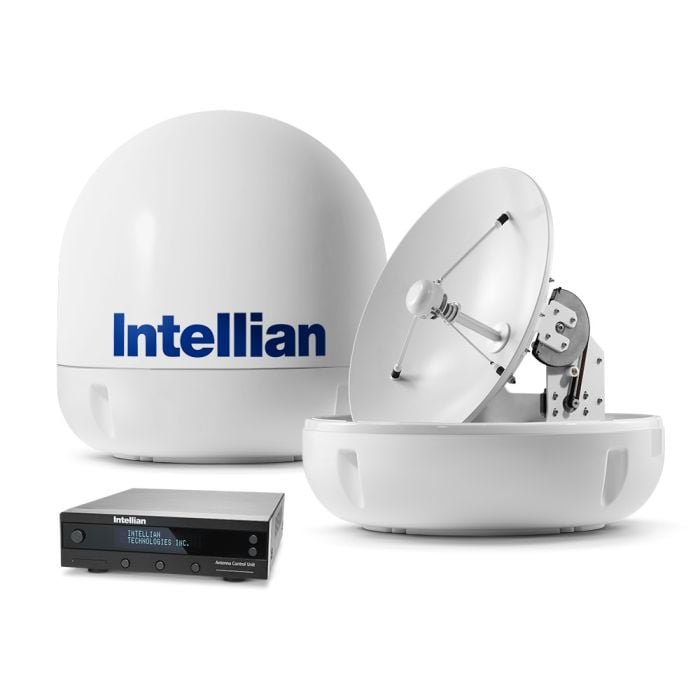

    Intellian i6 US / Canada Antenna System
    Add to Wish List Add to Compare

    Intellian i6P Marine Satellite TV System with 60cm (23.6 inch) Reflector & Universal Quad LNB (B4-619Q)

    US$8,095.00 US$6,476.00
    Overview

    Intellian's best-selling system, the i6 is renowned for its robustness and exceptionally strong signal gain. Great for extended offshore voyaging, the i6 is ideal for ocean cruisers, larger yachts and commercial vessels.

    BRAND:
    INTELLIAN
    MODEL:
    i6P
    PART #:
    B4-619Q
    WARRANTY:
    3 YEARS PARTS 2 YEAR LABOR
    Stock Status:
    In stock
    AVAILABILITY:
    USUALLY SHIPS IN 3-5 BUSINESS DAYS
    Product Code:
    Intellian-i6P-System-B4-619Q
    +
    -


    The Intellian i6P Marine Satellite TV System delivers crystal-clear television entertainment to your vessel, no matter where your journey takes you. With its 60cm reflector and Universal Quad LNB, this system ensures reliable reception of multiple satellite TV signals.




    More Information
    PRODUCT TYPESATELLITE TV
    USE TYPEMARITIME
    BRANDINTELLIAN
    MODELi6P
    PART #B4-619Q
    NETWORKBELL TV, DIRECTV, DISH NETWORK
    USAGE AREAREGIONAL - SEE COVERAGE MAP
    ANTENNA SIZE60 cm (23.6 inch)
    WEIGHT20,0 kg (44,0 livres)
    FREQUENCYKu BAND
    ACCESSORY TYPEANTENNA
    RECEPTION FREQUENCYKu-band： 10.7 ~ 12.75 GHz
    RADOME HEIGHT72 cm (28.3 inch)
    RADOME DIAMETER70 cm (27.6 inch)
    OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
    STORAGE TEMPERATURE-40°C to 80°C (-40°F to 176°F)
    VESSEL SIZEOVER 70 FEET
    CERTIFICATIONSCE COMPLIANCE, FCC
    POLARIZATIONCIRCULAR AND LINEAR
    AZIMUTH RANGE680º
    ELEVATION RANGE 5º to 90º
    SHIP'S MOTIONRoll ±25º, Pitch ±15º
    MINIMUM EIRP46dBW
    ROLL & PITCH RESPONSE RATE45º / sec
    TURNING RATE45º / sec
    RF OUTPUTQUAD OUTPUT
    SHIPS FROMIRVINE, CA (USA), SEOUL (SOUTH KOREA), ROTTERDAM (NETHERLANDS)
     Intellian i6 Features
     Fully Automated System
    • Automatic Satellite Search and Identification Function
    • 2-axis high speed tracking system
     High Performance Antenna
    • 60 cm (24 in) diameter parabolic antenna for receiving Ku-Band satellite signals
    • Circular or linear polarization depending on region and LNB selected
    • Built-in HD module for Ku-band HD TV reception
    iQ²: Quick&Quiet℠ Technology
    • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
    • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
    • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas
     Antenna Control Unit
    • Intuitive controls and digital satellite information display on the ACU
    • Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
    • DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module
     Multiple Receiver Capability
    • Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
    • Using the MIM a master receiver can be selected to control the target satellite
    • In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home
     Built-in GPS and NMEA 0183 Interface
    • The i6 includes a built-in GPS inside the Antenna Unit for faster signal acquisition. The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU
     Stylish Radome Profile
    • 70 cm (27.5 inch) antenna radome diameter
    • Antenna weighs less than 20 kg (44 lbs)
     Three Year Global Warranty
    • Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
    • The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017

    All Satellite Systems include the following parts as standard

    • Antenna & Radome 60 cm (24″) Reflector & LNB
    • ACU (Antenna Control Unit)
    • PC Controller Program (Software CD included)
    • Installation & Operation Manual
    • Installation Template
    • Quick Installation Guide

    Installation Kit

    • ACU Table Mounting Bracket × 2EA
    • 15 m (49 ft) × 1EA Antenna-ACU RG6 Coaxial Cable
    • 3 m (10 ft) × 1EA ACU-IRD RG6 Coaxial Cable
    • 10 m (33 ft) × 1EA DC Power Cable
    • 1.8 m (6 ft) × 1EA PC Serial Cable
    • Connectors & Screws
