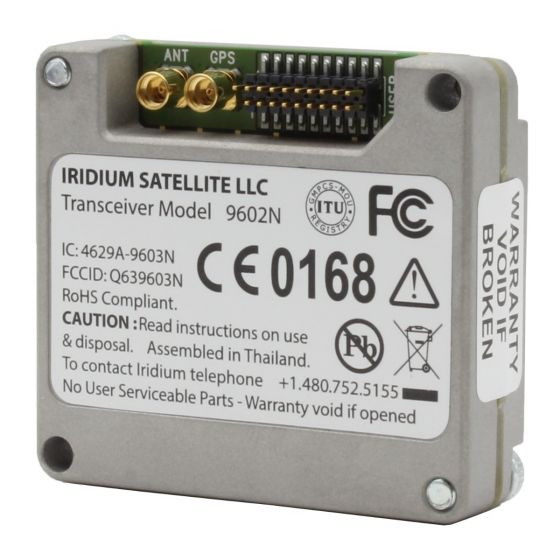

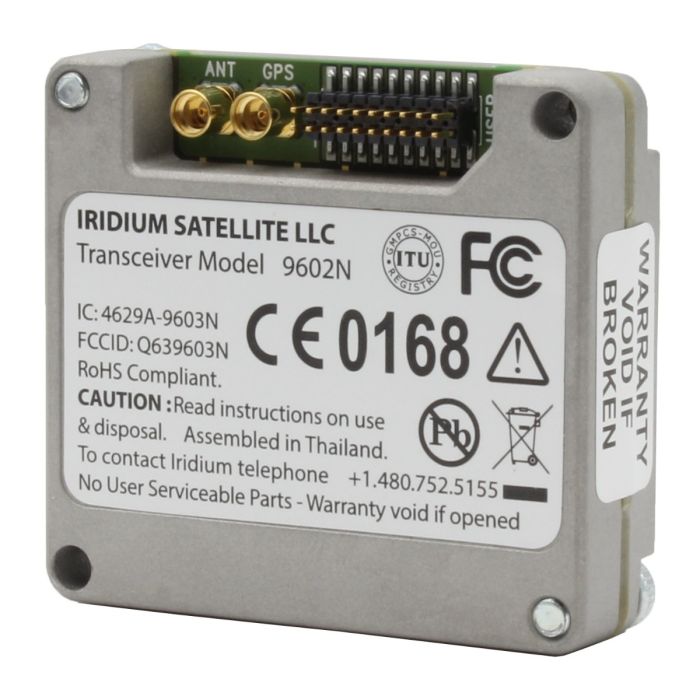

Iridium 9602N SBD Transceiver (4629A-9603N)

Name: Iridium 9602N SBD Transceiver (4629A-9603N)
Brand: IRIDIUM
SKU: Iridium-9602-SBD-Transceiver
Price: 199.99 USD
Availability: InStock

IRIDIUM IoT BROCHURE (PDF)

SEE ALL DOWNLOADS

US$199.99

Overview

The Iridium 9602N SBD transceiver, designed to be integrated into a wireless data application with other host system hardware and software, provides a complete solution, including tracking of maritime vessels, equipment monitoring, and automatic vehicle location.

BRAND:

IRIDIUM

MODEL:

9602N

PART #:

4629A-9603N

ORIGIN:

Thailand

WARRANTY:

12 MONTHS

Stock Status:

In stock

AVAILABILITY:

USUALLY SHIPS IN 3-5 BUSINESS DAYS

Product Code:

Iridium-9602-SBD-Transceiver

The Iridium 9602N SBD Transceiver is a compact and reliable solution for remote data transmission. This device enables seamless communication with IoT devices, sensors, and other remote assets, even in the most challenging environments. With its robust design and efficient power consumption, the 9602N is ideal for a wide range of applications, including environmental monitoring, asset tracking, and remote telemetry.

More Information
PRODUCT TYPE	SATELLITE M2M
USE TYPE	MARITIME, VEHICULAR
BRAND	IRIDIUM
MODEL	9602N
PART #	4629A-9603N
NETWORK	IRIDIUM
CONSTELLATION	66 SATELLITES
USAGE AREA	100% GLOBAL
SERVICE	IRIDIUM SBD
LENGTH	41 mm
WIDTH	45 mm
DEPTH	13 mm
WEIGHT	30 grams
FREQUENCY	L BAND (1-2 GHz)
POWER REQUIREMENTS	+5 V +/- 0.5 V
APPLICATIONS	ENVIRONMENT & SAFETY MONITORING, FLEET MANAGEMENT, PERSONNEL & ASSET TRACKING, REMOTE AUTOMATION & CONTROL
OPERATING TEMPERATURE	-40ºC to 85ºC (-40ºF to 185ºF)
CERTIFICATIONS	CE COMPLIANCE, FCC, RoHS
SHIPS FROM	CALGARY, AB, CANADA

BROCHURES

IRIDIUM IoT BROCHURE

(Size: 2.7 MB)

USER MANUALS

IRIDIUM AT COMMAND REFERENCE

(Size: 1.2 MB)
