TranSAT RST620B is an Iridium mobile or fixed satellite telephone that provides the option of a handheld or a completely hands free voice and data telephone for a wide variety of marine, land and air applications with a wide range of antenna options available.
The Iridium Beam TranSAT RST620B is a high-performance satellite tracking antenna designed to optimize signal reception for Iridium satellite phones and other satellite communication devices. This rugged and reliable antenna features a compact design, making it ideal for various applications, including marine, aviation, and vehicular installations.
The Iridium Beam TranSAT RST620B is a high-performance satellite tracking antenna designed to optimize signal reception for Iridium satellite phones and other satellite communication devices. This rugged and reliable antenna features a compact design, making it ideal for various applications, including marine, aviation, and vehicular installations.
PRODUCT TYPE | SATELLITE PHONE |
---|---|
USE TYPE | AVIATION, MARITIME, VEHICULAR |
BRAND | BEAM |
PART # | RST620B |
NETWORK | IRIDIUM |
USAGE AREA | 100% GLOBAL |
SERVICE | IRIDIUM VOICE |
FEATURES | IRIDIUM CERTIFIED |
FREQUENCY | L BAND (1-2 GHz) |
ACCESSORY TYPE | TERMINAL |
CERTIFICATIONS | IRIDIUM CERTIFIED |
Beam TranSAT 620B Features
• Slim line compact installation
• Voice, SMS, SBD and Circuit Switched Data capable
• Compact fully functional user handset for privacy mode
• Full Duplex Hands-free calling
• Echo cancelling technology
• Mic / Audio Integration to communication systems
• Horn Alert / Radio Mute capable
• RS232 D9 Serial Interface
• Accessory / Ignition sense
• SMA Connectors – Iridium Antenna
• FCC, Industry Canada, and ITU approval
• 12 month repair or replacement warranty

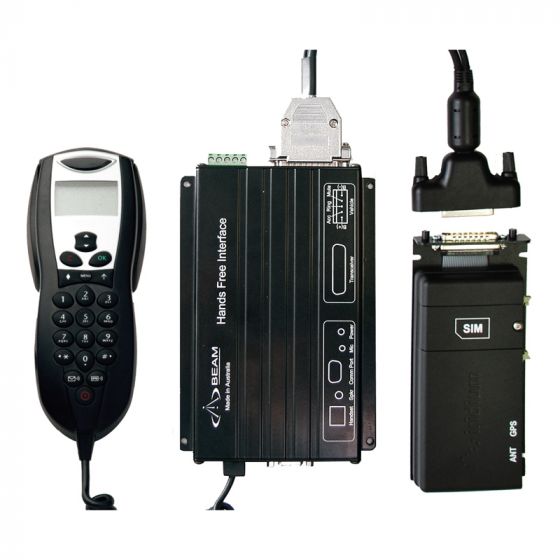

Beam RST620B package contains:
1 x RST620B Hands Free Interface (HFI) module
1 x RST970 (Intelligent Handset with cradle)
1 x Speaker
1 x Microphone
1 x 9522B Iridium L-Band transceiver
1 x L-Band transceiver bracket & Velcro fastener
1 x L-Band transceiver cable
1 x 3-wire Power cable harness & 2 Fuses
1 x SMA – TNC Antenna Cable Adaptor
1 x Socket wrench / Allen key
1 x Printed RST620B User Manual
1 x Printed Iridium Antenna Installation Guide
Iridium Global Coverage Map
Iridium delivers essential communications services to and from remote areas where no other form of communication is available. Powered by a uniquely sophisticated global constellation of 66 cross-linked Low-Earth Orbit (LEO) satellites, the Iridium® network provides high-quality voice and data connections over the planet’s entire surface, including across airways, oceans, and polar regions. Together with its ecosystem of partner companies, Iridium delivers an innovative and rich portfolio of reliable solutions for markets that require truly global communications.
At only 780 kilometers from the Earth, the proximity of Iridium’s LEO network means pole-to-pole coverage, a shorter transmission path, stronger signals, lower latency, and shorter registration time than with GEO satellites. In space, each Iridium satellite is linked to up to four others creating a dynamic network that routes traffic among satellites to ensure global coverage, even where traditional local systems are unavailable.
