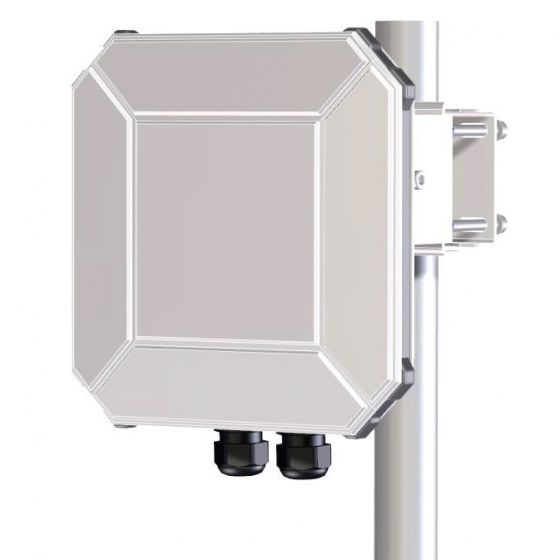

Cobham Explorer 540 BGAN M2M Terminal - C1D2 Compliant (403715A-00550)

US$2,285.00
Overview

The versatile and durable BGAN M2M terminal, EXPLORER 540, is the world's first Machine-to-Machine (M2M) communication terminal to operate on both Inmarsat BGAN (Broadband Global Area Network) and 2G/3G/LTE networks.

BRAND:
COBHAM
MODEL:
EXPLORER 540
PART #:
403715A-00550
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 2-3 BUSINESS DAYS
Product Code:
Cobham-Explorer-540-M2M

The Cobham Explorer 540 BGAN M2M Terminal is a rugged and reliable solution for critical M2M communication in the harshest environments. This C1D2 compliant device offers seamless connectivity with its dual-mode operation, utilizing both Inmarsat BGAN and 2G/3G/LTE networks for maximum uptime and cost-effectiveness. With its compact design, easy installation, and versatile power options, the Explorer 540 is the ideal choice for remote monitoring and control applications.

More Information
PRODUCT TYPESATELLITE M2M
USE TYPEFIXED
BRANDCOBHAM
MODELEXPLORER 540
PART #403715A-00550
NETWORKINMARSAT
CONSTELLATION3 SATELLITES
USAGE AREAGLOBAL (EXCEPT POLAR REGIONS)
SERVICEINMARSAT BGAN M2M
LENGTH202mm (8")
WIDTH202mm (8")
DEPTH51.8 mm (2")
WEIGHT1.6 kg (3.5 lbs) (with cellular modem)
FREQUENCYL BAND (1-2 GHz)
INGRESS PROTECTIONIP 66
ACCESSORY TYPETERMINAL
SUPPORTED LANGUAGESENGLISH, CHINESE, FRENCH, GERMAN, JAPANESE, RUSSIAN, SPANISH

Cobham Explorer 540 Features
• EXPLORER 540 is BGAN M2M certified and BGAN Class 2 Type Approved for services such as BGAN Link
• Lightweight and rugged IP66 design ensures durability for outside mounting - no enclosure needed
• Polemount included in the package
• Simple to set up and operate
• Versatile power options with both Power over Ethernet (PoE) and 10-32VDC input
• Two cable glands for easy installation of standard power and Ethernet cables into the back housing
• Remote management of the terminal via SMS including configuration, debugging, and access to the web interface
• The optional cellular 2G/3G/LTE Modem is an integrated part of the design
• Automatic failover between BGAN and the cellular network ensures continuous connectivity

• EXPLORER 540 terminal
• Polemount
• Quick Start Guide
• Multi-language webserver (ENG, FR, DE, ES, RU, JP and CN)
• 2 Cable Glands and 1 Blanking Plug
• Security torx bit for back cover
• Allen key for polemount

Inmarsat BGAN M2M Coverage Map


Inmarsat BGAN M2M Coverage Map

BROCHURES
pdf
 (Size: 262.1 KB)
QUICK START
USER MANUALS
FIRMWARE
