The iNetVu FLY-1801 is a highly portable, self-pointing, auto-acquire antenna system that can be configured with the iNetVu 7024C controller and assembled by one person in less than 20 minutes.
Key Features:
The iNetVu FLY-1801 is a highly portable, self-pointing, auto-acquire antenna system that can be configured with the iNetVu 7024C controller and assembled by one person in less than 20 minutes.
Key Features:
| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | PORTABLE |
| BRAND | INETVU |
| MODEL | FLY-1801 |
| NETWORK | VSAT |
| ANTENNA SIZE | 180 cm |
| FREQUENCY | Ku BAND, C BAND (4-8 GHz) |
| ACCESSORY TYPE | ANTENNA |
| INGRESS PROTECTION | IP 66 |
| OPERATING TEMPERATURE | -30°C to 60°C (-22°F to 140°F) |
| SURVIVAL TEMPERATURE | -40ºC to 65ºC (-40°F to 150°F) |
| POLARIZATION | ± 95º |
| AZIMUTH RANGE | Full 360º in overlapping, 200º sectors |
| ELEVATION RANGE | 0° to 90° |

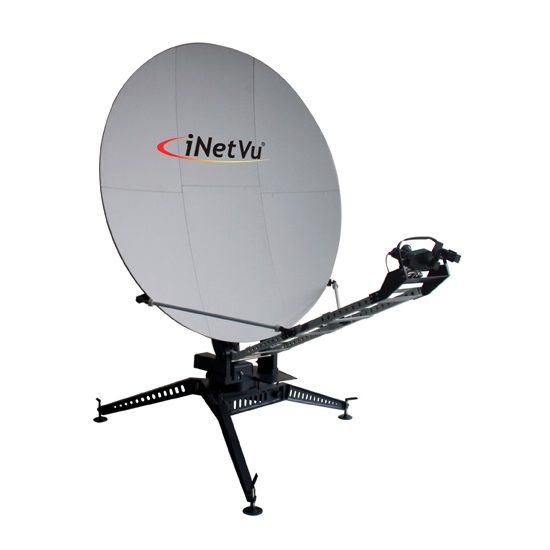

iNetVu FLY-1801 1.8m Ku or C Band Antenna Features
• Flyaway Antenna FLY-1801 is has 6-Piece Carbon Fibre Reflector
• One-button, auto-pointing Controller acquires any Ku or C band satellite within 2 minutes
• 3 Axis motorization
• Supports manual control
• Captive Hardware/Fasteners
• No tools required for assembly
• Set-up time less than 20 minutes, one person
• Designed to work with the inetVu® 7710 Controller
• Leveling capability for uneven surfaces
• Standard 2 year warranty
